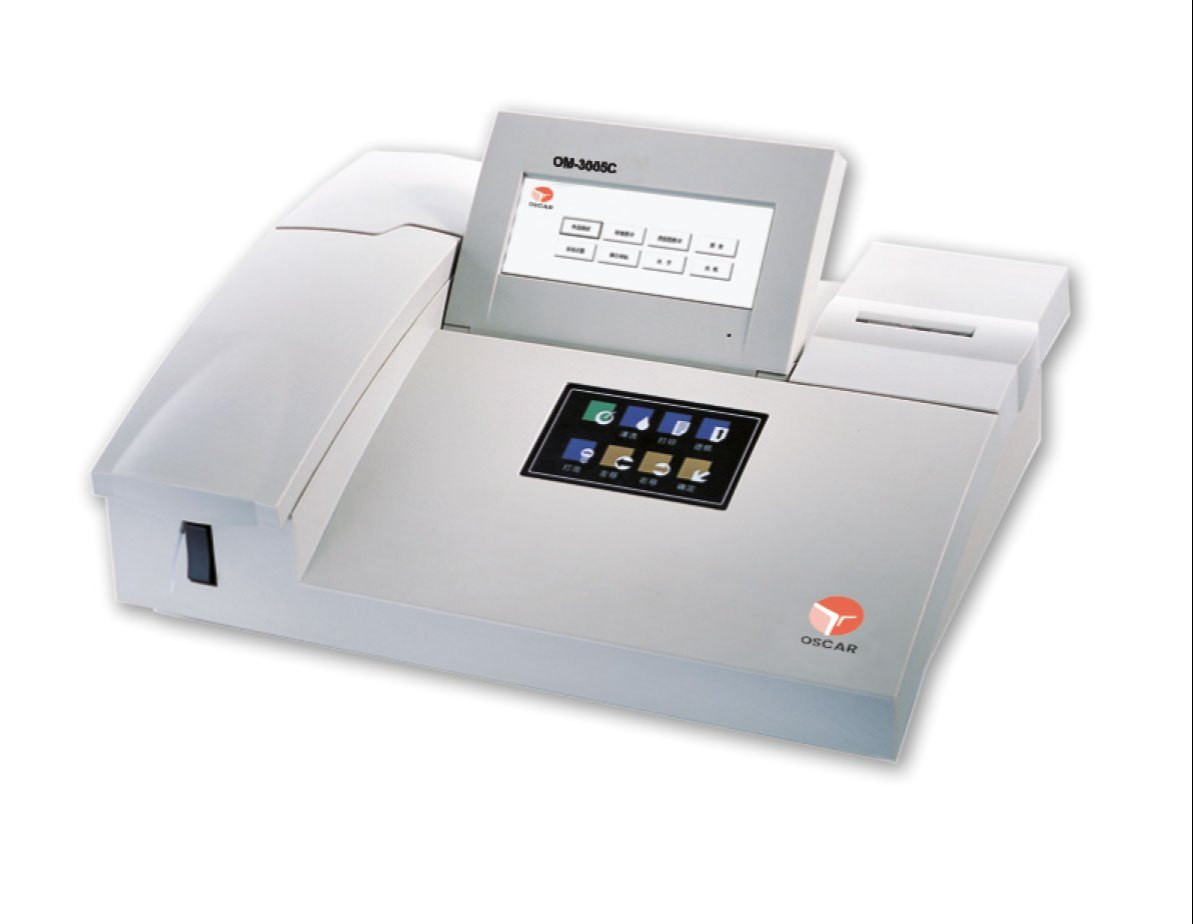

Oscar OM-3005C Semiautomatic Biochemistry analyzer

Oscar OM 3005C Semi Auto Biochemistry Analyzer:-

Auto Biochemistry Analyser for End point, kinetic, fixed point Multi standard and coagulation tests. Quartz flowcell system Built-in thermal printer with graphic capability.

Features :

❖ Easy Windows operation system with mouse, large color LCD display

❖ Reagent open system supports flow cell and cuvette mode, close system on request

❖ Analytical modes include kinetic, fixed time, bichromatic end point with or without reagent blank or sample blank, linear or non-linear calibration

❖ Real-time curve monitoring enhances the reliability of result

❖ Large memory, up to 200 test protocols can be programmed

❖ Powerful QC function: Westguard Multi-rule, Levey Jennings plot, 2 controls per test

❖ Auto power-on self-check

❖ Additional lamp saving

❖ Multiform result output including patient comprehensive report

❖ Software optional for date management in PC

❖ Easy maintenance

Technical Specifications :-

Photometric Range -0.500-3.500Abs

Resolution- 0.001Abs(displayed),0.0001Abs(calculated) Light Source Halogen lamp, 6V/10W

Wavelengths- 340,405,500,546,578,620,670nm,1 more filter optional

Wavelength Accuracy ±2nm

Band Width -£10nm

Aspirate Volume- 100-300ul

Cross Contamination Rate -<1%

Memory- 200 test protocols, up to 3000 test results

Interface- RS-232, PSTN (optional)

Flow Cell-25μl Metal-quartz flow cell

Cuvette Mode -12.5mm×12.5mm cuvette optional Temperature Control- 25°C,30°C;37°C ±0.5°C

Display -7" color LCD

Input -External mouse and optional external keyboard Output- Built-in printer or external printer (optional)

Net Weight- 8KG

Dimensions -L × W × H (mm) 460×330×190

Power Supply -AC 110V/220V±10%, 50Hz/60Hz
